ProSecure Unified Threat Management (UTM) Appliance Reference Manual
5-14 Firewall Protection
v1.0, January 2010
To create a new outbound LAN WAN service rule:
1. In the LAN WAN Rules screen, click the Add table button under the Outbound Services table.

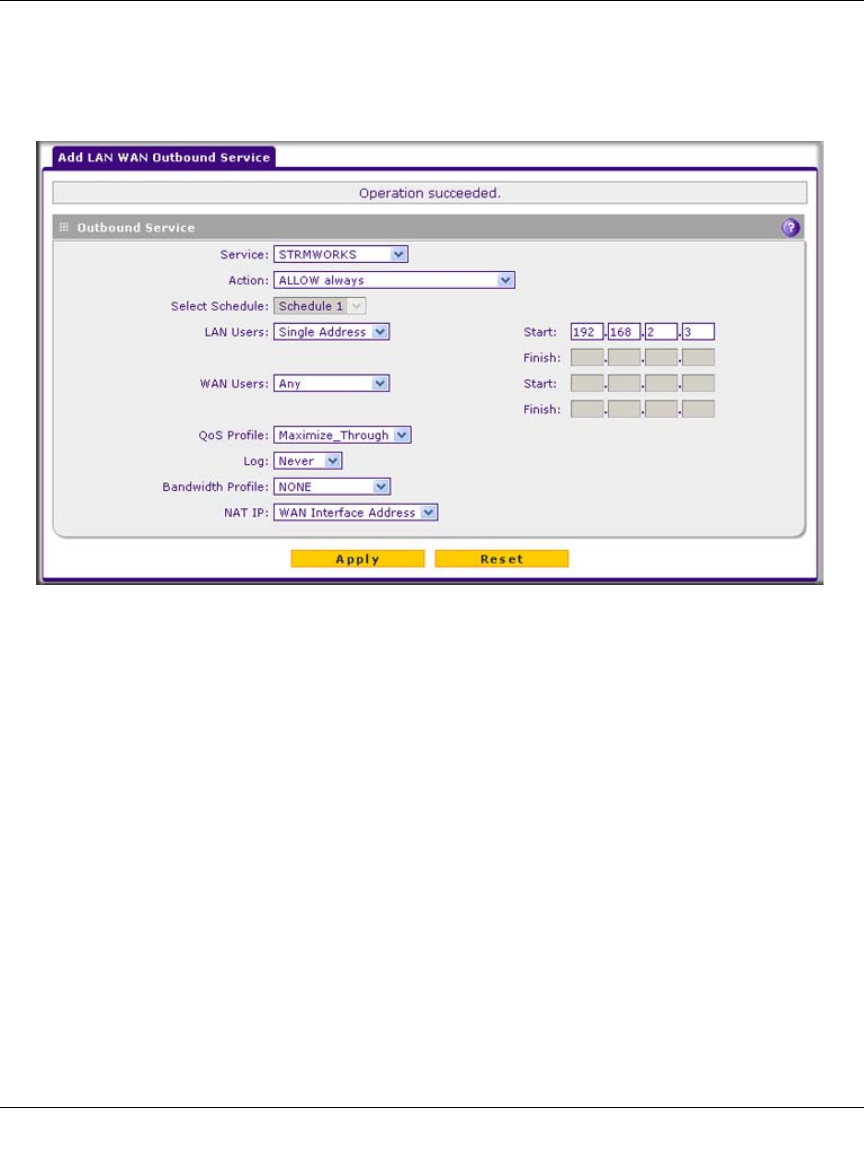

The Add LAN WAN Outbound Service screen displays.
2. Enter the settings as explained in Table 5-2 on page 5-5.
3. Click Apply to save your changes. The new rule is now added to the Outbound Services table.
LAN WAN Inbound Services Rules
The Inbound Services table lists all existing rules for inbound traffic. If you have not defined any
rules, no rules are listed. By default, all inbound traffic (from the Internet to the LAN) is blocked.
Remember that allowing inbound services opens potential security holes in your firewall. Only
enable those ports that are necessary for your network.
Figure 5-3
