ProSecure Unified Threat Management (UTM) Appliance Reference Manual
7-6 Virtual Private Networking Using IPsec Connections
v1.0, January 2010
3. Select the radio buttons and complete the fields and as explained Table 7-2.

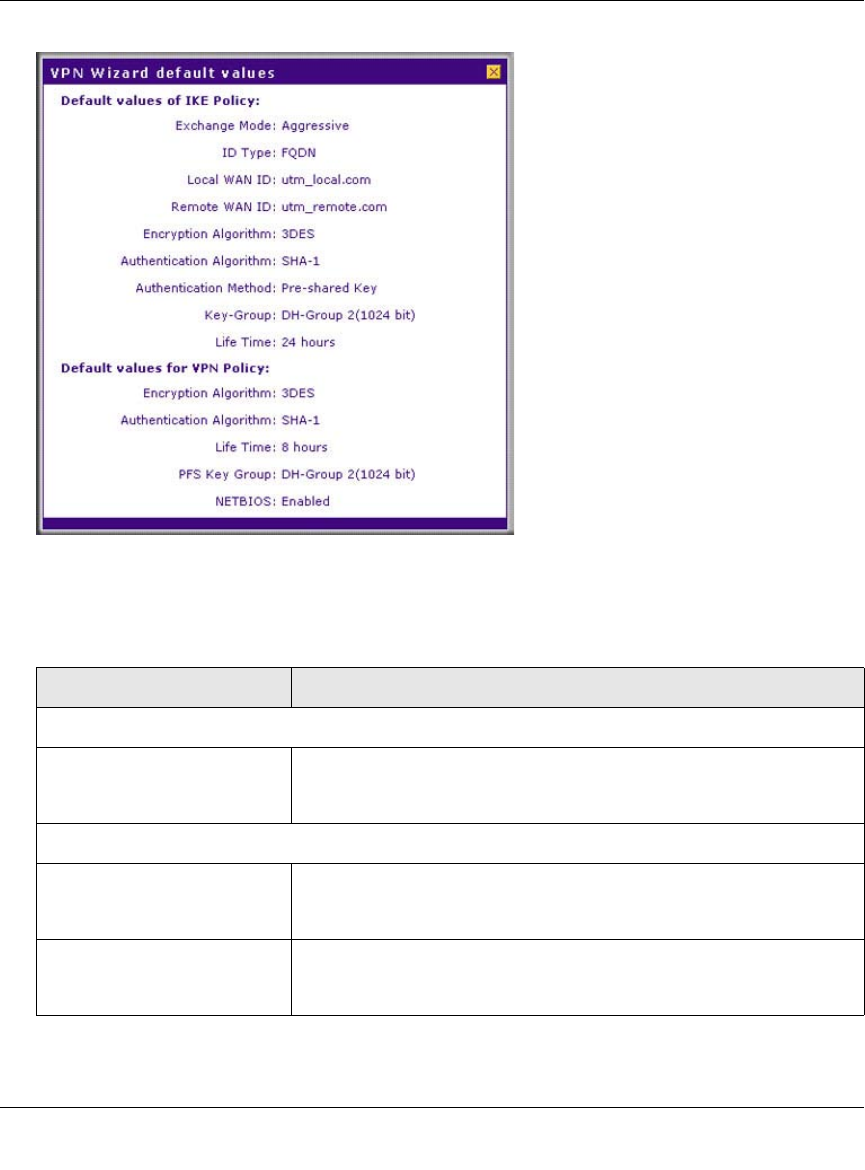

Figure 7-5
Table 7-2. (IPsec) VPN Wizard Settings for a Gateway-to-Gateway Tunnel
Setting Description (or Subfield and Description)
About VPN Wizard
This VPN tunnel will connect
to the following peers
Select the Gateway radio button. The local WAN port’s IP address or
Internet name appears in the End Point Information section of the
screen.
Connection Name and Remote IP Type
What is the new Connection
Name?
Enter a descriptive name for the connection. This name is used to help
you to manage the VPN settings; the name is not supplied to the
remote VPN endpoint.
What is the pre-shared key? Enter a pre-shared key. The key must be entered both here and on the
remote VPN gateway. This key must have a minimum length of
8 characters and should not exceed 49 characters.
