ProSecure Unified Threat Management (UTM) Appliance Reference Manual
2-4 Using the Setup Wizard to Provision the UTM in Your Network
v1.0, January 2010
5. Click Login. The Web Management Interface appears, displaying the System Status screen.
(Figure 2-2 on page 2-4 shows the top part of a dual-WAN port model screen. For information
about this screen, see “Viewing System Status” on page 11-20).
Note: After 5 minutes of inactivity (the default login time-out), you are automatically
logged out.

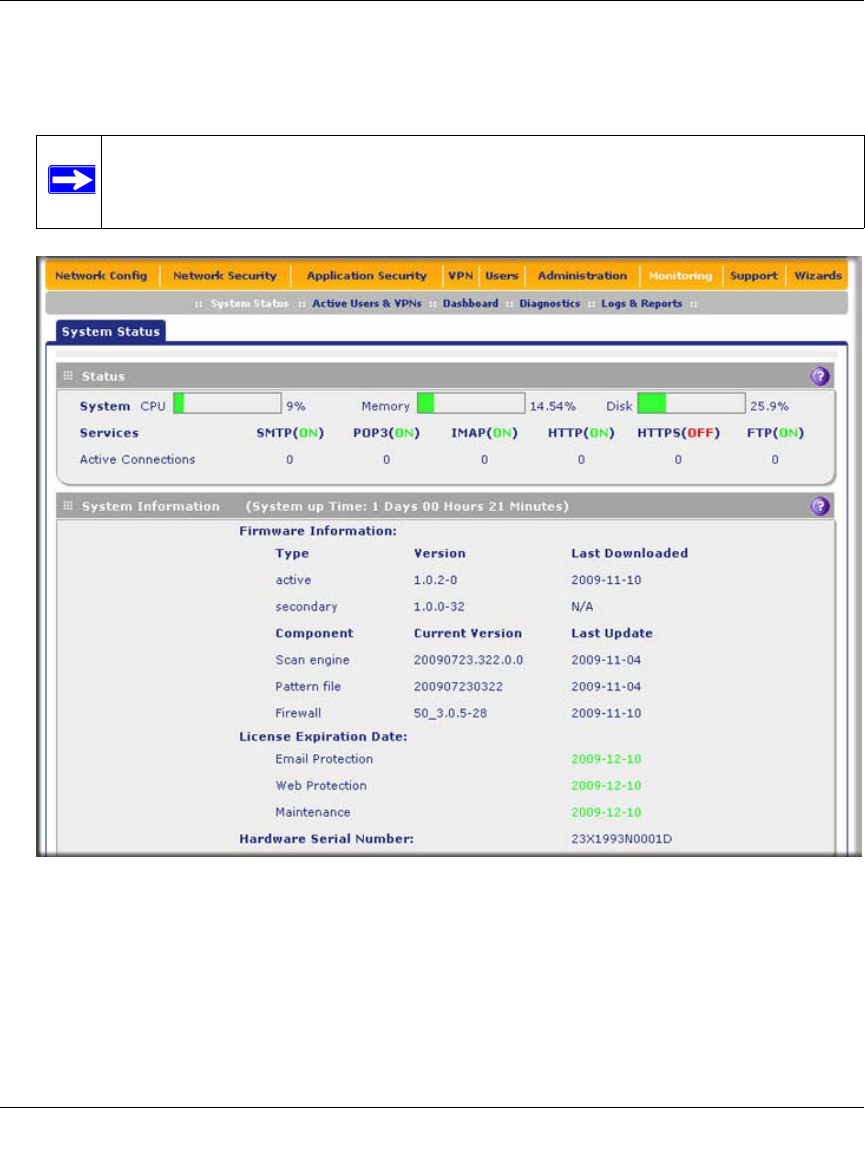

Figure 2-2
