ProSecure Unified Threat Management (UTM) Appliance Reference Manual
Using the Setup Wizard to Provision the UTM in Your Network 2-27
v1.0, January 2010
If your UTM is connected to the Internet, you can activate the service licenses:
1. Select Support > Registration. The Registration screen displays.
2. Enter the license key in the Registration Key field.
3. Fill out the customer and VAR fields.
4. Click Register.
Note: Activating the service licenses initiates their terms of use. Activate the licenses
only when you are ready to start using this unit. If your unit has never been
registered before you can use the 30-day trial period for all 3 types of licenses to
perform the initial testing and configuration. To use the trial period, do not click
Register in step 4 of the procedure below but click Trial instead.

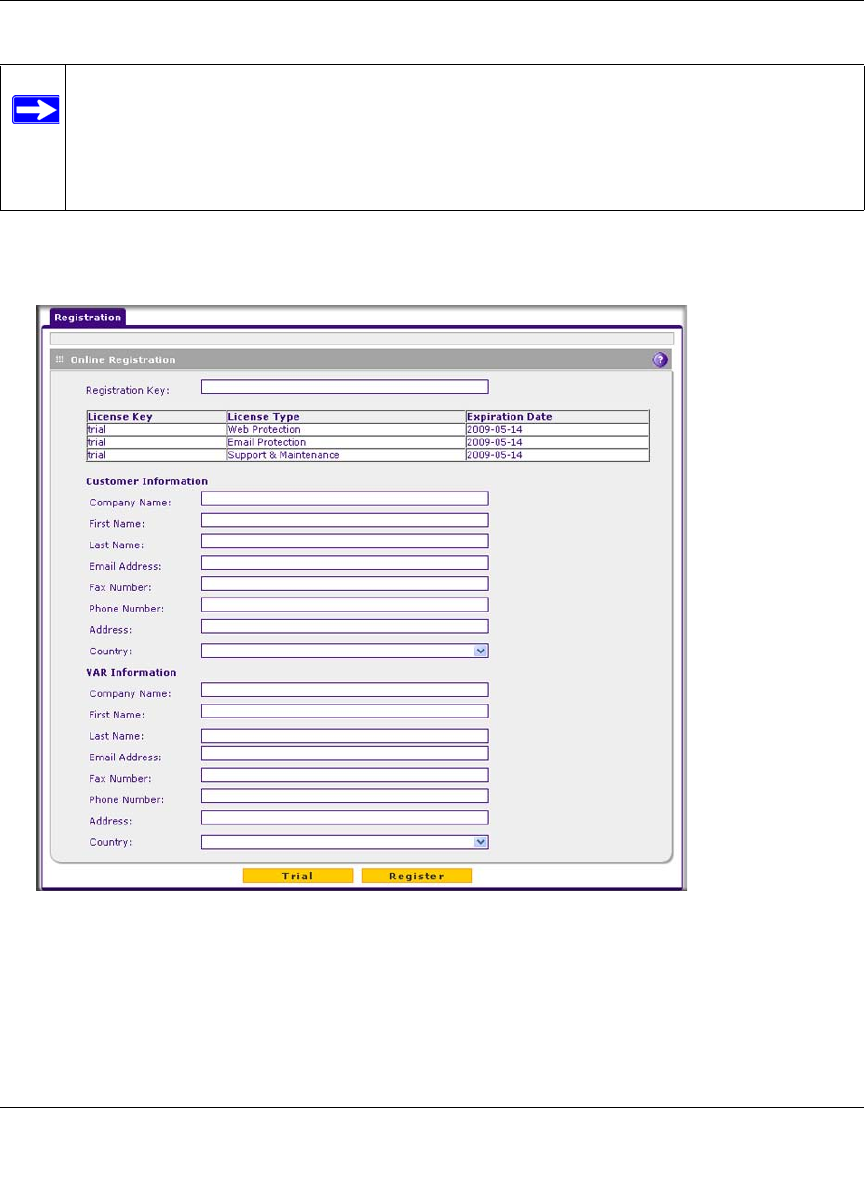

Figure 2-17
